MS-FK-600D
防雨分控Weatherproof Sub-Controller
产品概述
Product Overview
该产品是一款防雨机箱分控，双网口设计2寸TFT屏幕五方向按键操控更加灵活。8个端口输出每个端口可配置最大12X512输出最大速率达3M，每个端口对应域数量及域号都可更改，速率250K-3M可独立更改。通过网络配置软件或节点服务器可对灯具地址及参数进行更改。在标准DMX512应用中可对灯具RDM进行管理。可通过网络OTA升级。
This waterproof cabinet sub-controller features dual Ethernet ports, a 2-inch TFT screen and 5-way navigation keys for flexible operation.It has8 output ports, each configurable for up to 12×512 channels with a maximum baud rate of 3M. The domain quantity, domain ID and baud rate (250K‒3M) can be modified independently per port.
Light fixture addresses and parameters are adjustable via network configuration software or node server. It supports RDM management under standard DMX512 protocol and remote OTA upgrade over network.

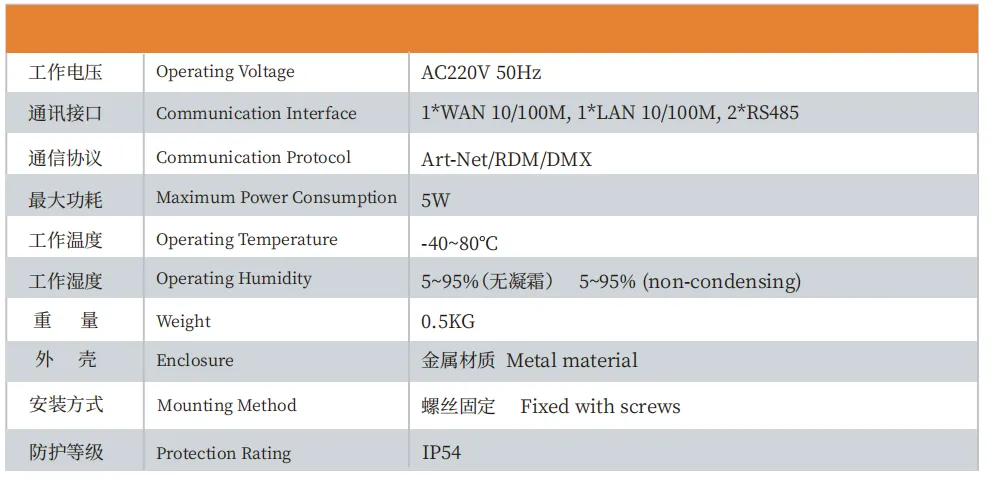

硬件参数
Hardware Parameters
